Thermal Search-and-Rescue Drone

Overview

The Army's MINERVA challenges say it plainly: Canada currently lacks a drone that can do ISR in Arctic conditions. The Arctic requirement calls specifically for sovereignty operations and search and rescue with the Canadian Rangers. Detecting a person in snow or brush from a cheap thermal camera is the sharpest hobby-scale version of that requirement, and it is what this build does.

The airframe is an X500-class quadcopter with a Pixhawk-class flight controller. A Raspberry Pi 5 companion computer carries the payload brain: a FLIR Lepton 3.5 thermal camera for sensing and a Hailo AI HAT+ running person detection at the edge, so the drone finds people on board rather than streaming raw video back to a ground station. Every detection is fused with the drone's telemetry into a lat/lon point and published to a live situational-awareness map.

The design rule throughout: the drone cues, a human confirms. Nothing beyond detection and notification is automated. In a real SAR sweep with the Rangers, the drone is the wide-area sensor and the person on the ground makes every call.

Proof of Build

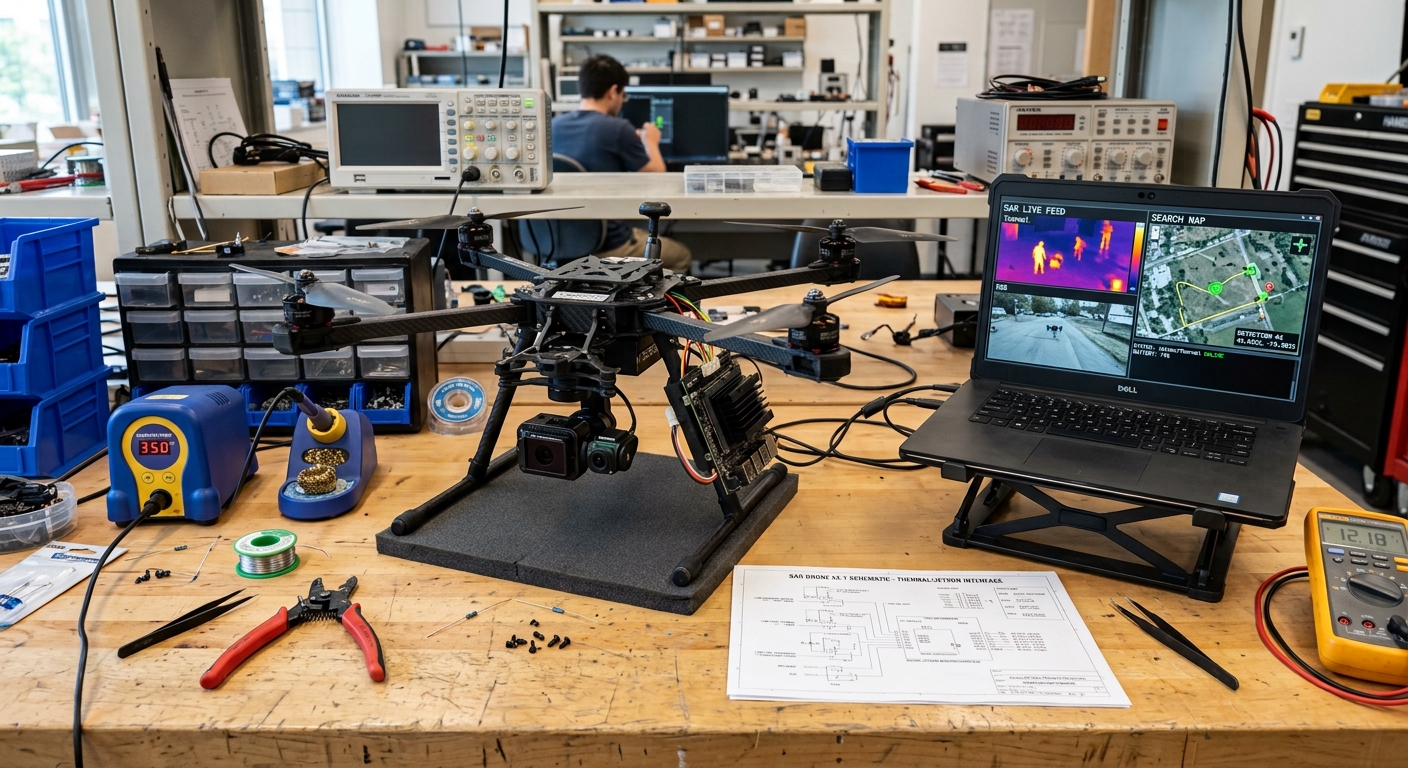

The rig on my bench: the X500-class quadcopter on a workbench stand with the gimbal camera and Pi 5 companion computer fitted, next to the laptop running the thermal SAR live feed, detected persons highlighted, and the search map with the planned flight path.

Bill of Materials

Everything below is purchased and on my bench.

Sensor & Accelerator Specs

These are the numbers the whole payload design hinges on, taken from the FLIR Lepton engineering datasheet and the Hailo AI HAT+ product specification, not from bench anecdotes. The 8.7 Hz frame rate in particular is a hard ceiling that shapes everything downstream: at survey speed the drone moves measurably between frames, which is why step 08 timestamps frames at capture rather than on arrival.

FLIR Lepton 3.5

160 x 120, VOx microbolometer

Spectral band

8-14 um LWIR

Frame rate

8.7 Hz (exportable)

Sensitivity

<50 mK (0.05 C)

Field of view

57 deg horizontal, f/1.1

Radiometric accuracy

+/-5 C or 5% (high gain)

Flat-field correction

integrated shutter

Hailo-8L

13 TOPS INT8, PCIe Gen 3 x1 (single lane on the Pi; the AI HAT+ also ships in a 26 TOPS Hailo-8 variant, this build uses the 13 TOPS Hailo-8L)

From Thermal Pixel to Map Marker

Step 08 does the math; here is the geometry it encodes. With the camera held near-nadir and the altitude known from the flight controller, each detection's bounding-box centre projects along a ray to the ground. The model is deliberately simple, a pinhole camera with a small-angle correction for the gimbal pitch, because cueing a ground team does not need survey-grade photogrammetry.

Architecture

Figure 1: thermal frames are acquired and preprocessed on the Pi 5, inference runs on the Hailo HAT+, detections fuse with flight telemetry on the Pi, and land on a live map where a human confirms each detection.

Wiring & Connections

The whole payload chain fits on the X500's top and bottom plates. The two rules that saved me the most pain: common ground everywhere (the FC, the Pi, and the receiver must share a ground or serial links misbehave in ways that look like software bugs), and the Pi gets its own regulator, never power it from the flight controller's USB port.

How I Built It

# one-time toolchain + build
git clone --recurse-submodules https://github.com/ArduPilot/ardupilot.git
cd ardupilot
./waf configure --board sitl
./waf copter

# launch a simulated quad in a Gazebo world
sim_vehicle.py -v ArduCopter -f gazebo-iris --console --map

# in the MAVProxy console: the Arctic-search geofence profile
param set FENCE_ENABLE 1
param set FENCE_TYPE 7        # altitude + circle + polygon
param set FENCE_RADIUS 300    # metres, stays well inside the test area
param set FENCE_ALT_MAX 122   # metres AGL, the Canadian basic ceiling (400 ft)
param set FS_GCS_ENABLE 1     # GCS-loss failsafe

# spin each motor at 10% for 2 seconds, in order A-D,
# and check it matches the quad-X diagram (A=rear-right CCW, etc.)
motortest 1 0 10 2
motortest 2 0 10 2
motortest 3 0 10 2
motortest 4 0 10 2

SERIAL5_PROTOCOL 23    # RC input (CRSF) on the receiver UART
RSSI_TYPE 3            # RSSI comes from the receiver protocol
FS_THR_ENABLE 1        # throttle/radio failsafe action: RTL
FS_THR_VALUE 975       # PWM below which radio-loss is declared

BATT_LOW_VOLT 14.8    # low warning, start heading home
BATT_CRT_VOLT 14.0    # critical: land now
BATT_FS_LOW_ACT 2     # low action: RTL
BATT_FS_CRT_ACT 1     # critical action: land
BATT_CAPACITY 5200    # mAh, used for consumed-mAh tracking

[General]
TcpServerPort=5760
ReportStats=false

[UartEndpoint fc]
Device=/dev/serial0
Baud=921600

[UdpEndpoint gcs]
Mode=normal
Address=192.168.1.50
Port=14550

SERIAL2_PROTOCOL 2    # MAVLink 2
SERIAL2_BAUD 921      # 921600
SR2_POSITION 10       # stream rates (Hz) the fusion step relies on
SR2_EXTRA1 10         # attitude

import cv2

cap = cv2.VideoCapture(0, cv2.CAP_V4L2)
cap.set(cv2.CAP_PROP_FOURCC,
        cv2.VideoWriter.fourcc('Y', '1', '6', ' '))
cap.set(cv2.CAP_PROP_CONVERT_RGB, 0)   # keep raw radiometry

ok, frame = cap.read()                 # frame is uint16, 160x120
assert ok and frame.dtype == 'uint16'

sudo apt install hailo-all          # HailoRT, PCIe driver, Tappas
hailortcli fw-control identify      # verify the HAT+ enumerates

# fine-tune on thermal person imagery, export, compile for the 8L
yolo train model=yolov8s.pt data=thermal-person.yaml imgsz=640 epochs=100
yolo export model=runs/detect/train/weights/best.pt format=onnx
hailomz compile yolov8s --ckpt best.onnx --hw-arch hailo8l \
    --calib-path calib-thermal/

from pymavlink import mavutil
import math

conn = mavutil.mavlink_connection('/dev/serial0', baud=921600)
pos = conn.recv_match(type='GLOBAL_POSITION_INT', blocking=True)
att = conn.recv_match(type='ATTITUDE', blocking=True)

def project(cx, cy, w, h, alt_m, hfov_deg, vfov_deg, pitch_rad, yaw_rad):
    # Near-nadir pinhole projection with separate horizontal/vertical FOV
    # and vehicle yaw. Flat-terrain, fixed-camera, small-angle MODEL ONLY:
    # terrain elevation, altitude above ground (not sea level), boresight
    # calibration, lens distortion, and frame/telemetry timestamp alignment
    # all add error on top of this approximation.
    half_h = math.radians(hfov_deg) / 2
    half_v = math.radians(vfov_deg) / 2
    x_m = alt_m * math.tan(half_h * (cx / w - 0.5) * 2)          # right of boresight
    y_m = alt_m * math.tan(pitch_rad + half_v * (0.5 - cy / h) * 2)  # ahead of boresight
    north_m = y_m * math.cos(yaw_rad) - x_m * math.sin(yaw_rad)  # camera frame -> north/east
    east_m  = y_m * math.sin(yaw_rad) + x_m * math.cos(yaw_rad)
    return north_m, east_m   # converted to lat/lon via local tangent plane

sudo apt install mosquitto mosquitto-clients
mosquitto_pub -h localhost -q 1 -t sar/detections \
    -m '{"lat":43.7735,"lon":-79.4158,"conf":0.83,"ts":1791536000}'

const map = L.map('map').setView([43.7735, -79.4158], 15);
L.tileLayer('https://tile.openstreetmap.org/{z}/{x}/{y}.png').addTo(map);
const client = mqtt.connect('ws://192.168.1.50:9001');
client.subscribe('sar/detections');
client.on('message', (topic, payload) => {
  const d = JSON.parse(payload.toString());
  L.circleMarker([d.lat, d.lon],
    {radius: 8, color: d.conf > 0.7 ? 'red' : 'orange'}).addTo(map)
    .bindPopup('confidence ' + d.conf + ' - human confirm required');
});

[ ] Drone registered - Transport Canada Drone Management Portal
[ ] Pilot Certificate (Basic minimum; Advanced for the sites I want)
[ ] NAV CANADA Drone Site Selection Tool: airspace class checked
[ ] RPAS flight authorization if the site is controlled airspace
[ ] Visual observers, site survey, and bystander distance planned
[ ] Failsafes re-verified on the day, props off first

Testing & Metrics

The test protocol mirrors how a real SAR sensor would be evaluated, scaled down to what a bench and a backyard allow. Each run has a defined setup, procedure, and metric; nothing counts as measured until it is logged from an actual run. Flight-derived numbers are pending, the airframe is still inside the compliance gate, so results to date come from SITL and bench/ground payload runs.

Test Runs

1. T1, Bench thermal capture. Setup: Lepton on the Pi, known hot and cold references (mug of water at measured temperature, ice pack). Procedure: capture raw 16-bit frames at each reference, record pixel means. Metric: capture rate in frames per second and monotonic response of pixel mean to reference temperature.
2. T2, Detection performance, ground runs. Setup: a person standing, kneeling, and lying in snow and in brush, with the payload walked or tripod-mounted at increasing slant ranges. Procedure: run the Hailo pipeline on recorded and live frames, log every detection with confidence. Metric: recall per range band and false alarms per hour of empty-background footage. Target: high recall at short ranges with a false-alarm rate low enough that the human confirmer is not flooded.
3. T3, Georeferencing error. Setup: a ground marker surveyed with the u-blox GNSS from my rover kit as a reference track (meter-class GNSS, not survey grade). Procedure: ground runs at several altitudes and off-nadir angles (payload elevated, not yet flown), compare reported lat/lon against the marker reference. Metric: horizontal error in metres, binned by altitude and angle. Target: error small enough to walk a ground team to the marker.
4. T4, End-to-end latency. Setup: full live pipeline, camera, Hailo, fusion, MQTT broker, map, on the bench network. Procedure: introduce a warm target on a known timestamp and time its appearance as a map marker. Metric: frame-to-marker latency in seconds. Target: seconds, not minutes.
5. T5, Failsafe behaviour. Setup: SITL first, then the real airframe with props off, then controlled flight after the compliance gate. Procedure: trigger link loss, low battery, and geofence breach in turn. Metric: correct mode transition (RTL or land) in every case, with the transition logged.
6. T6, Mission endurance. Setup: fully loaded aircraft (payload, Pi, Hailo running) after the compliance gate. Procedure: fly the search pattern on one pack until the low-battery failsafe. Metric: usable minutes per pack; the cold-weather derating for these packs comes from my cold-soak characterization rig dataset rather than being invented here.

Targets and Current Status

Measured figures will be published here once outdoor testing is lawful and complete. Until then, every number above is a target, not a result.

Troubleshooting & Lessons

• Garbled or zero MAVLink on the Pi. Symptom: mavlink-router connects but heartbeats never parse. Causes found: the Pi's serial console still owned /dev/serial0, and TX/RX were not crossed on the JST-GH-to-Dupont adapter. Fix: disable the serial console in raspi-config, keep enable_uart=1, cross the lines, and share ground between FC and Pi. Lesson: with serial, verify the physical layer with a loopback test before touching software.
• Hailo AI HAT+ invisible to the OS. Symptom: hailortcli fw-control identify finds nothing. Cause: the Pi 5 ships with the external PCIe lane off, and a loosely seated FFC ribbon looks identical to a dead board. Fix: dtparam=pciex1 and dtparam=pciex1_gen=3 in config.txt, reseat the ribbon, then re-check enumeration.
• Thermal frames freeze for a beat, mid-run. Symptom: the Lepton stream stalls for a fraction of a second at intervals. Cause: the sensor's flat-field correction (FFC) shutter events, normal Lepton behaviour, not a bug. Fix: schedule FFC during non-critical moments (on the ground, or between search legs) and have the pipeline tag frames around FFC as degraded rather than feeding them to the detector.
• Radio failsafe triggers during a range walk. Symptom: RTL declared at a shorter distance than expected with the transmitter live. Cause: receiver antennas parallel to each other and shadowed by the frame. Fix: mount the two ELRS antennas at 90 degrees, clear of carbon and the battery, then re-run the range check with props off. Lesson: a failsafe that fires early in testing is doing its job, fix the RF, not the threshold.
• Detections vanish when the field Wi-Fi drops. Symptom: markers stop appearing on the map and never catch up after reconnect. Cause: fire-and-forget MQTT publishes with no local buffer. Fix: QoS 1 plus an on-disk spool on the Pi that republishes in order on reconnect, the store-and-forward discipline from my DDIL work, applied at drone scale.

Legal & Safety Notes (Canada)

Status & Roadmap

• Done: all components purchased and on the bench; ArduPilot SITL + Gazebo environment running on the homelab cluster with search patterns, geofences, and failsafes exercised; airframe assembled with motor order/direction and radio failsafe bench-verified; Pi 5 talking MAVLink over UART through mavlink-router; raw 16-bit Lepton capture bench-verified in Python (transport verified; radiometric calibration still open).
• In progress: thermal person model fine-tuning and Hailo compilation; ground-run detection and georeferencing test runs (T2/T3); Leaflet map consuming MQTT detections; end-to-end latency harness.
• Next: Transport Canada registration and pilot certificate; NAV CANADA airspace check for the test area; first outdoor flight; measured detection and georeferencing results published here; feed detections into the multi-domain common operating picture.

Related Builds

• Canadian Defence Hardware Program, the hub page: how this build fits the Defence Drone Initiative, MINERVA challenges, and the rest of the bench.
• LENTUS-Style Drone Mapping, the ArduPilot SITL + Gazebo simulation basis this drone's mission logic is built on.
• Cold-Soak Characterization Rig, the battery dataset that derates this drone's packs for Arctic operations.
• Passive Acoustic Drone Detector, the receive-only sibling: detecting other drones instead of people.
• Multi-Domain Common Operating Picture, where this drone's signed detections end up once the fusion layer is live.

Build Narrative: Phase by Phase

Phase 1: airframe. An X500-class quadcopter with a Pixhawk-class flight controller. Motor order and direction and the radio failsafe were bench-verified before anything flew. A range walk later showed the ELRS failsafe declaring RTL earlier than expected, traced to receiver antennas mounted parallel and shadowed by the frame, fixed by mounting them at 90 degrees clear of carbon and the battery.

Phase 2: simulation first. ArduPilot SITL with Gazebo runs on the homelab cluster: search patterns, geofences, and failsafes are all exercised in simulation before outdoor flight. Nothing about the mission logic meets the real sky untested.

Phase 3: companion computer link. The Pi 5 talks MAVLink to the flight controller over UART through mavlink-router. Bringup fought the Pi's serial console owning /dev/serial0 and uncrossed TX/RX on the JST-GH-to-Dupont adapter; the fix sequence was disable the console in raspi-config, keep enable_uart=1, cross the lines, share ground. Serial gets a loopback test before software now.

Phase 4: thermal capture. The FLIR Lepton 3.5 (160x120 microbolometer, 8.7 Hz, 14-bit sensor output carried as raw 16-bit frames) streams frames captured in Python. The values are radiometric only with the sensor's radiometric mode and calibration metadata applied; the raw-capture path is bench-verified, calibration is still open. Its flat-field-correction shutter events stall the stream for a fraction of a second at intervals, which is normal Lepton behaviour: FFC is scheduled for non-critical moments and frames around FFC are tagged degraded rather than fed to the detector.

Phase 5: edge AI. The Hailo AI HAT+ runs person detection on board so the drone finds people without streaming raw video to a ground station. Bringup needed dtparam=pciex1 and pciex1_gen=3 in config.txt (the Pi 5 ships with the external PCIe lane off) plus a reseated FFC ribbon, confirmed with hailortcli fw-control identify.

Phase 6: georeferencing and map. Every detection fuses with the drone's telemetry into a lat/lon point and publishes to a Leaflet situational-awareness map over MQTT. An early fire-and-forget design lost detections whenever field Wi-Fi dropped; the fix was QoS 1 plus an on-disk spool that republishes in order on reconnect, the store-and-forward discipline from the DDIL work applied at drone scale.

What You Need

The build assumes you already fly or are learning to fly responsibly. The regulatory items are not optional extras: they gate the outdoor flight tests.

Challenges and Lessons Learned

• Garbled or zero MAVLink on the Pi. The serial console owned /dev/serial0 and TX/RX were uncrossed on the adapter. Lesson: with serial, verify the physical layer with a loopback test before touching software.
• The Hailo AI HAT+ was invisible to the OS. The Pi 5 ships with the external PCIe lane off, and a loosely seated ribbon looks identical to a dead board. Lesson: dtparam=pciex1 and gen=3 first, reseat the ribbon second, then check enumeration.
• Thermal frames froze for a beat, mid-run. Lepton flat-field-correction shutter events, normal sensor behaviour, not a bug. Lesson: schedule FFC for non-critical moments and tag frames around it as degraded.
• Radio failsafe triggered during a range walk. Receiver antennas were parallel and shadowed by the frame. Lesson: a failsafe that fires early in testing is doing its job, fix the RF (90-degree antenna placement), not the threshold.
• Detections vanished when field Wi-Fi dropped. Fire-and-forget MQTT with no local buffer. Lesson: QoS 1 plus an on-disk spool that republishes in order on reconnect.

What Is Next

• Transport Canada registration and the pilot certificate, then the NAV CANADA airspace check for the test area.
• First outdoor flight with the full payload chain live: thermal capture, Hailo person detection, georeferencing, map.
• Publish measured detection and georeferencing results: ranges, altitudes, false alarms, and how far the lat/lon points land from the truth.
• Feed detections into the multi-domain common operating picture as the air-domain node.
• Cold-weather flight validation, informed by the battery cold-soak dataset from the rig in this same program.
